1/4"x3/8" Mini Split Accessory (115V)

Features:

• Quick & easy to install
• Fits any mini split up to 24,000 BTU/hr
• Installs inside evaporator, remotely above the ceiling or inside SlimDuct lineset cover
• 12 Months Limited Warranty
• Two reservoir options supplied
• Self priming pump - suction lift to 4'
• Automatically operates on water rise
• Cleanable stainless steel filter
• Handles up to 0.8g/h @ 26' head
• Quiet: only 33bD(A)
• Push-in electrical terminals for quick connection of power and alarm wires
• Volt free N/O & N/C contact switch off unit and activate optional alarm

Kit Includes:

• Assembled inline reservoir (1.56"x2.75"x1.56") complete with lid & sensor cable, float & filter
• Submersible (pan mount) reservoir (1.56"x2.75"x1.56")

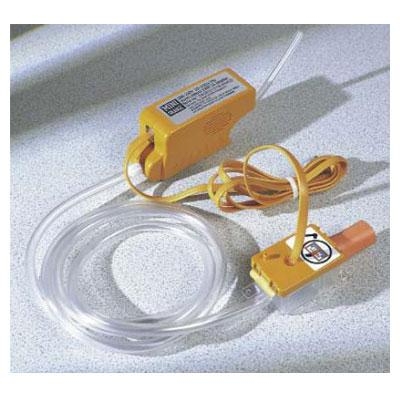

• Pump unit
• Orange rubber connector tube
• 6" length of 1/4" i.d. vinyl breather tube
• 5' length of 1/4" i.d. vinyl discharge tube
• 1/4" - 3/16" reducing connector
• 6' orange power cable assembly
• 2 self-adhesive Velcro strips 3/4" x 2"
• 4 cable ties (12"x1/8")
• Installation Manual
